Highest precision for your application – High-Precision Gearboxes from AKIM
What you achieve with high-precision solutions:
Every tenth of a degree counts? Then you're in the right place.
In a nutshell:
Where precise positioning, zero backlash, and repeatability are crucial, cycloidal or eccentric gearboxes are often used. They are ideal for applications with high demands on accuracy and dynamics.
Where High-Precision Gearboxes Are Used
Our gearboxes are used wherever failures, inaccuracies, or downtimes are not an option.
Robot Joint Drives
Precise movements in robotics
Precision Positioning
Handling and assembly systems
Machine Tool Rotary Tables
Highly accurate positioning
24/7 Continuous Operation
Reliable operation around the clock
Can't find your industry? We develop solutions for almost any application.
Unsere Hochpräzisionsgetriebe-Lösungen
ACBAR Eccentric Gearboxes
Compact & Indestructible for the Toughest Applications
Was Sie erreichen:
Maximum availability and minimal downtime – in conveyor technology, cranes, cable cars, drive systems, and harsh industrial environments.
Ideal für:
Technische Highlights:
- Sizes6 standard sizes (Type 11 to Type 501)
- Nominal Torques80 – 1,000 Nm (special versions with over 15,000 Nm possible)
- Ratiosup to 13,600:1 in one stage
- DesignsFlange design, foot housing, direct motor attachment
- LubricationLifetime lubrication – virtually maintenance-free
- Efficiencyhigh efficiency even under difficult conditions
- Operating Temperaturedesigned for industrial standard environments

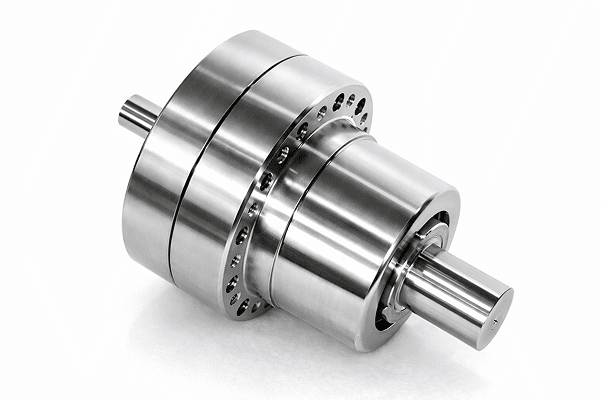

Servo Cycloidal/ Double Disc Gearbox
Highest Precision for Dynamic Movements
Was Sie erreichen:
Precise movements that work – in robotics, machine tools, rotary tables, and positioning systems.
Ideal für:
Technische Highlights:
- Adjustable BacklashBacklash adjustable to < 0.02°
- Torque Range80–4,000 Nm nominal torque (special versions with over 100,000 Nm possible)
- Ratiosup to 100:1 in the smallest space
- Sizes6 standard sizes (2S-R90/00 to 2S-R90/4)
- Moment of InertiaVery low for fast accelerations
- Torsional StiffnessHigh for precise positioning
- EfficiencyHigh efficiency for energy-efficient operation
- Particularly Suitable forRobotics, rotary tables, handling and positioning systems
Alignment and Slewing Gears
Precise Positioning of Large Masses
Was Sie erreichen:
Precise positioning and repeatability – in alignment and tracking drives, antenna and radar systems, as well as slewing drives in heavy machinery and shipbuilding.
Ideal für:
Technische Highlights:
- Torquesup to over 100,000 Nm (application-specific)
- Designsingle or multi-stage, depending on implementation needs
- Backlashlow backlash or adjustable backlash up to < 0.02°
- Ratiosindividually defined, also multi-stage
Your Path to the Right Solution
Describe your requirement to us – our AI analyzes your needs and recommends the suitable solution.
Do Our High-Precision Solutions Fit Your Application?
Trust that pays off
- Your application needs the highest positioning accuracy: backlash setting < 0.02° is required
- You need dynamic movements: rapid accelerations without compromising precision
- Repeatability is critical: precise positioning in every cycle
- Space is limited: maximum performance in minimal space
- 24/7 continuous operation: reliable, even after years
High Precision vs. High Performance
| Properties | High Precision Solutions | High Prefomenace Solutions |
|---|---|---|
| Backlash | < 0.02° adjustable | Standard |
| Focus | Precision & Dynamics | Robustness & Torque |
| Application | Robotics, Positioning | Conveying, Heavy Duty |
| Torque | Up to 4,000 Nm | Up to 100,000 Nm |
| Speed | High-dynamic | High speeds up to 10,000+ min⁻¹ |
How We Find the Right Solution Together
Downloads & technische Daten
ACBAR-Excentergetriebe:
Servogetriebe 2S-R90:
Servogetriebe 2SC:
Richt- und Schwenkgetriebe
Tailored Gear Solutions for Your Project
Whether you need a new development or a customized modular adaptation – we develop the right solution for your application.
Whether you need a new development or a customized modular adaptation – we develop the right solution for your application.
Contact usNot sure which gearbox is right for you?
Our chat-based product finder analyzes your requirements and suggests suitable solutions.
Frequently Asked Questions about AKIM Solutions
Welche Getriebelösung ist die richtige für mich?
Beschreiben Sie uns Ihre Anforderungen – unser Ingenieurteam analysiert diese kostenlos und ermittelt die optimale Lösung. Drehmoment, Drehzahl, Einbauraum, Präzision, Schnittstelle – wir berücksichtigen alle relevanten Parameter.
Welche Getriebelösung ist die richtige für mich?
Beschreiben Sie uns Ihre Anforderungen – unser Ingenieurteam analysiert diese kostenlos und ermittelt die optimale Lösung. Drehmoment, Drehzahl, Einbauraum, Präzision, Schnittstelle – wir berücksichtigen alle relevanten Parameter.
Welche Getriebelösung ist die richtige für mich?
Beschreiben Sie uns Ihre Anforderungen – unser Ingenieurteam analysiert diese kostenlos und ermittelt die optimale Lösung. Drehmoment, Drehzahl, Einbauraum, Präzision, Schnittstelle – wir berücksichtigen alle relevanten Parameter.
